Trunnion mounted cylinders are heavy duty pivoting cylinders with pintles mounted to the head, cap or intermediate position. Although superior to clevis or pivot mounted cylinders, they may still require stop tubes in long stroke applications.

Mill – Type are cylinders designed to fill a need for a more durable, more reliable product to reduce down-time and maintenance costs.

Telescopic cylinders are used when an application requires a compact retracted dimension, but needs a longer stroke. These cylinders are generally single acting and are available in two to five stages. Common mounting options for telescopic cylinders are trunnion and cross-tube.

Tie-rod cylinders are most often used in industrial applications. They use high strength, threaded steel rods and nuts to hold square or rectangular end caps to each end of the cylinder barrel. Seals are placed between the barrel and end cap to prevent leakage

Telescopic cylinders are used when an application requires a compact retracted dimension, but needs a longer stroke. These cylinders are generally single acting and are available in two to five stages. Common mounting options for telescopic cylinders are trunnion and cross-tube.

The working principle of single-acting cylinders are to transfer hydraulic fluids or an output force in one direction only. Within the cylinder, the piston rod can push outwards but cannot pull back, therefore requiring a force in the opposite direction to return the rod back to its original position.

The purpose of a flow control valve is to regulate the flow rate in a specific portion of a hydraulic circuit. In hydraulic systems, they’re used to control the flow rate to motors and cylinders, thereby regulating the speed of those components.

Hydraulic seals are gasket-like rings that are designed to seal areas between the components in a hydraulic cylinder. Hydraulic cylinders contain many different components, some of which are exposed to the fluid. To prevent fluid from leaking around these components, hydraulic seals are used. Hydraulic seals are designed to fit the components in a hydraulic cylinder while creating a leak-proof seal around them.

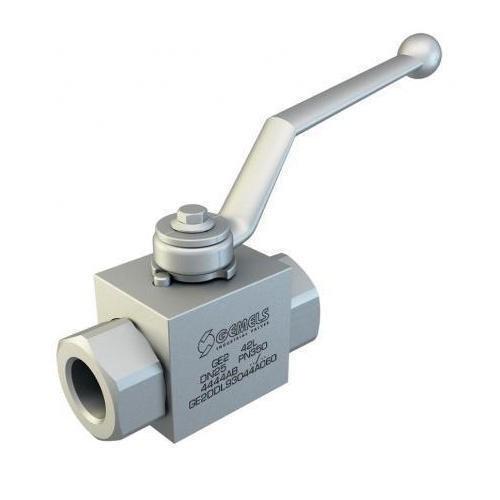

A ball valve is a flow control device which uses a hollow, perforated and pivoting ball to control liquid flowing through it. It is open when the ball’s hole is in line with the flow inlet and closed when it is pivoted 90 degrees by the valve handle, blocking the flow.
